Water Chief For Fire Departments Specifications
Fire departments need mobile water trailers configured for their specific firefighting operations. Tank capacity, trailer durability, a rapid-deployment pump system, and fire hose integration are all critical requirements for a trailer in a firefighting fleet.

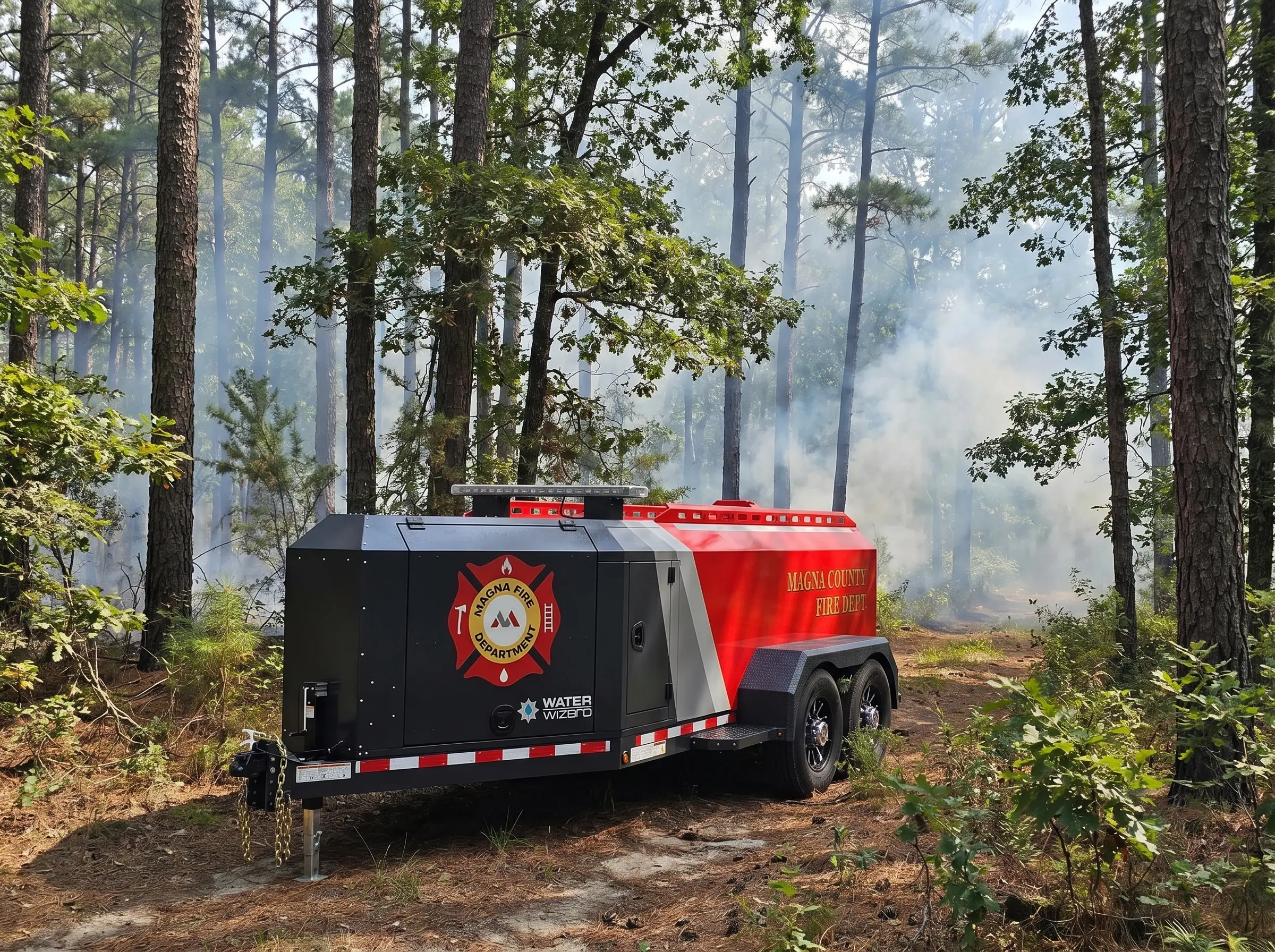

Mattok Manufacturing engineered the patent-pending Water Chief® with these exact specifications in mind. Our mobile water trailer supports emergency fire control, fire watch, and related firefighting tasks for fire departments. Experience a reliable water platform for your firefighters today.

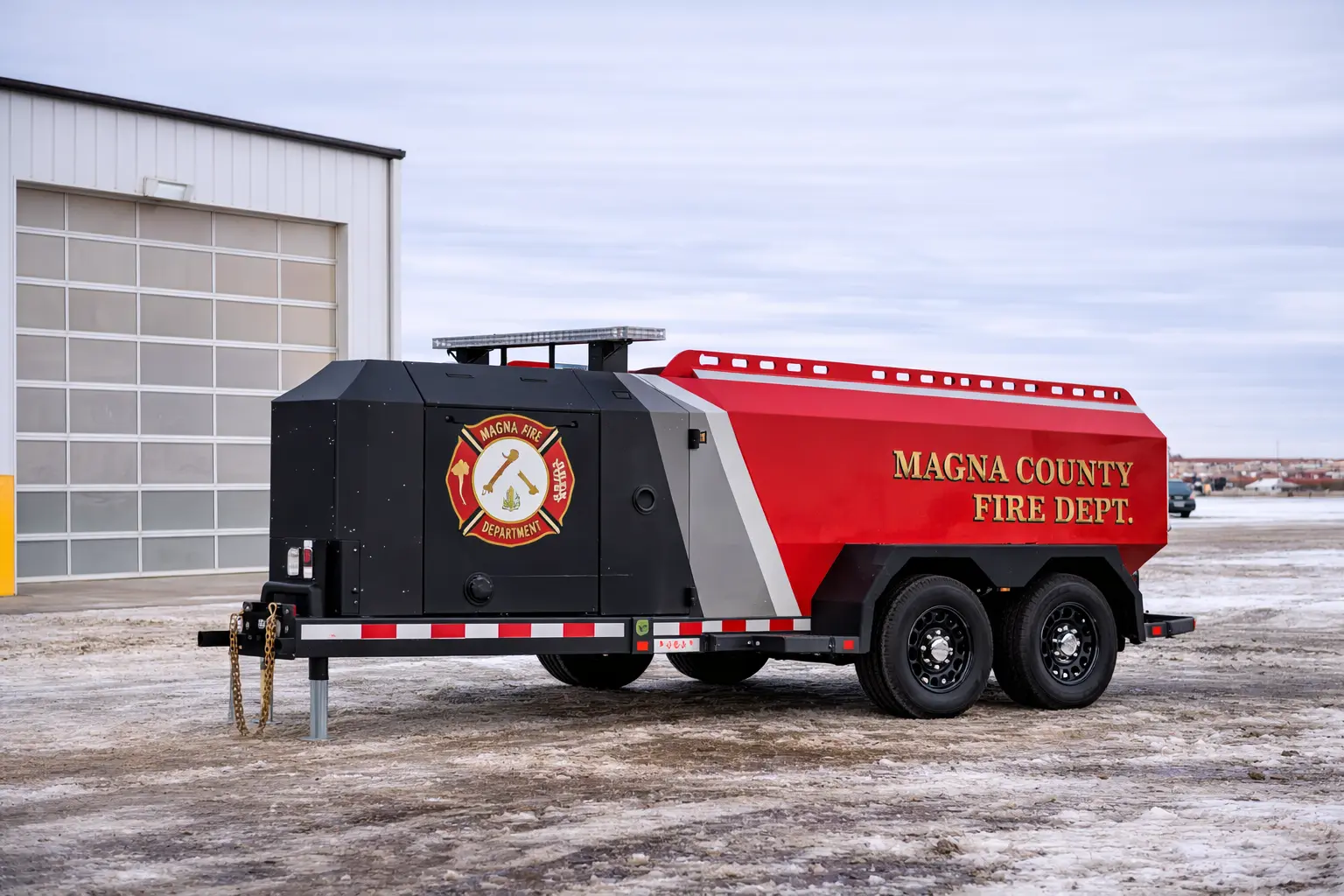

Water Chief Overview
As a professional-grade water trailer for fire departments, The Water Chief® is engineered for long-term use in demanding field operations. It boasts superior performance for water transport, staging, and deployment.
High-Capacity Onsite Water Supply
- 1,250 US gallons (4,700 L)

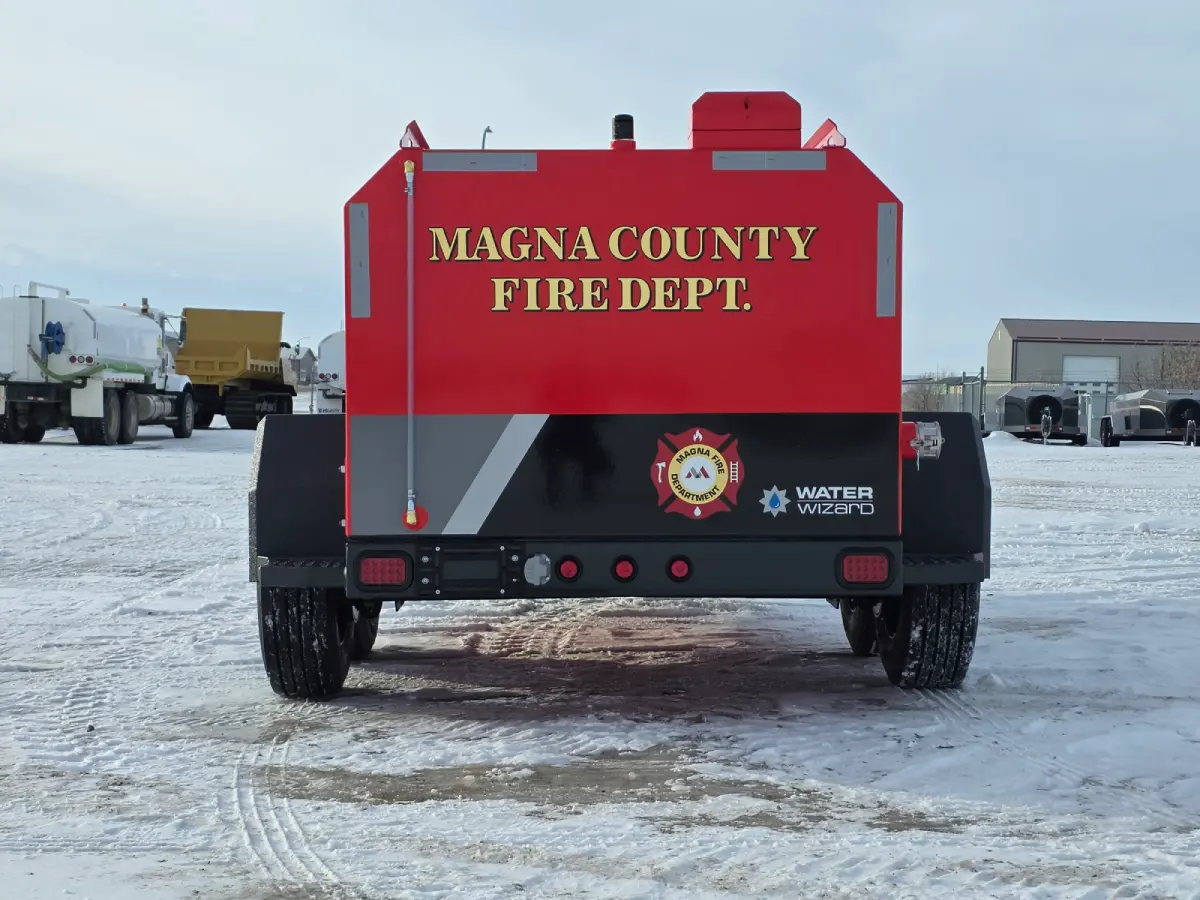

Water Chief Dimensions
- Length: 18 ft 6 in (5.6 m)
- Width: 7 ft 3 in (2.2 m)
- Height: 5 ft 8 in (1.7 m)
Water Chief Weight Ratings
- Tare weight: 4,750 lbs (2,150 kg)
- GVWR: 18,000 lbs (8,165 kg)
*Weights vary slightly by model
Water Chief Specifications
Here’s a detailed look at the Water Chief for fire departments’ specifications:

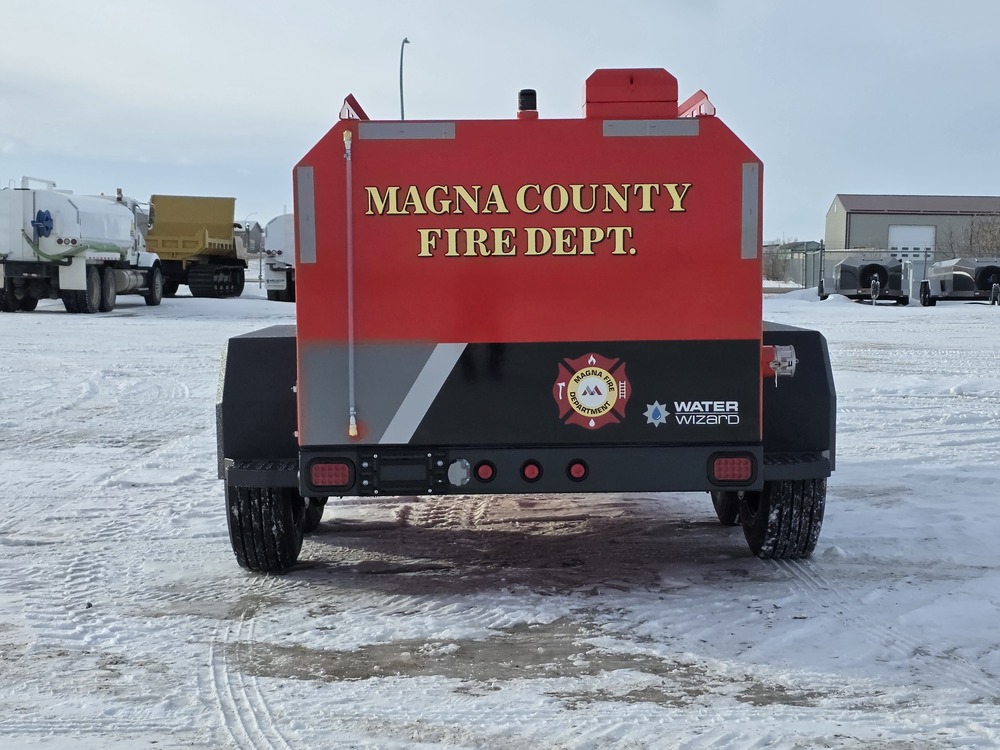

Trailer Construction
- 7-gauge steel tank
- Dual internal baffle system to manage liquid surge during transport
- Heavy-duty trailer frame with rock guard fenders
- Enclosed LED electrical system with integrated lightning protection systems
The steel construction is designed for durability and resistance to cracking or deformation under repeated loading and unloading cycles.

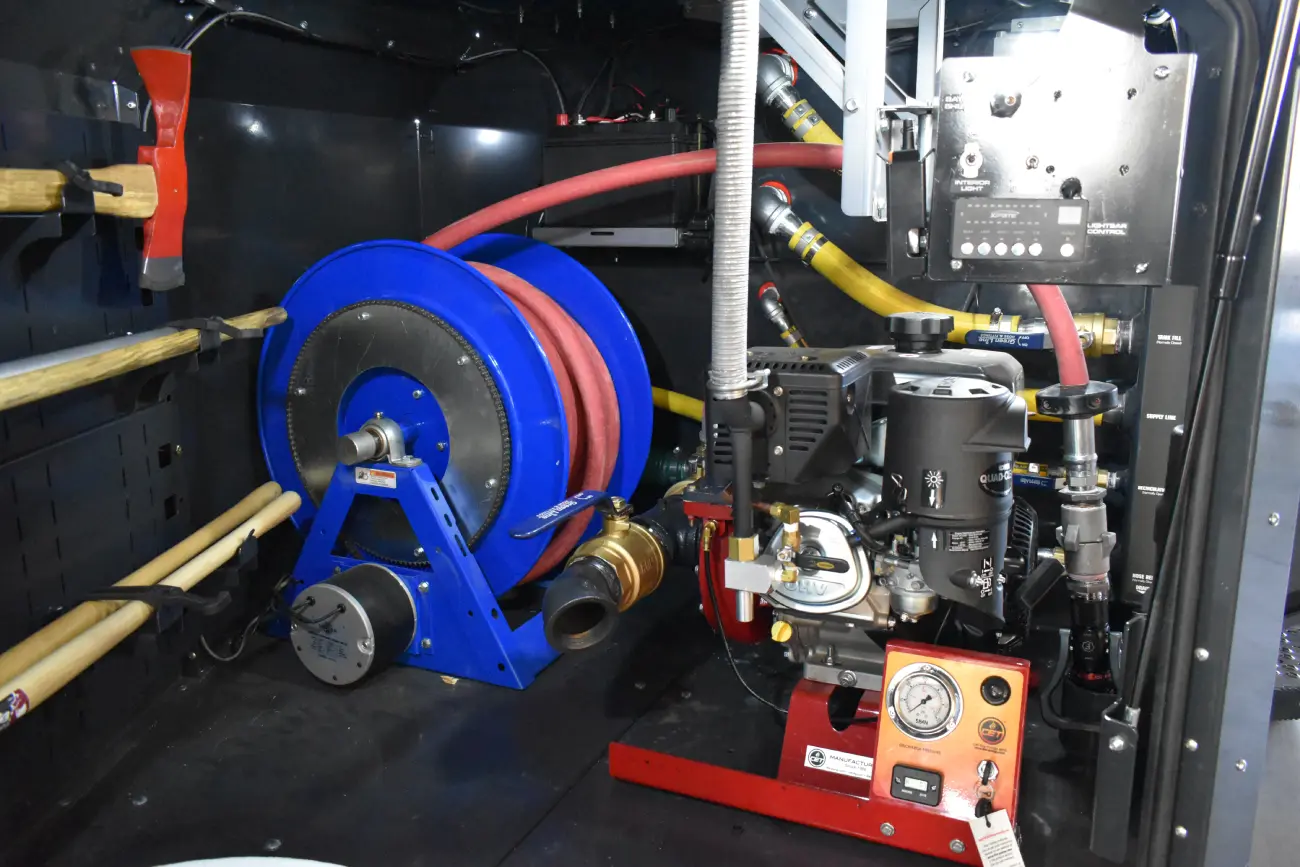

Standard Pump System
- Pump: Fire pump configuration
- Distribution: 2-inch (50 mm) distribution spray head c/w remote valve operation with optional fire cannon addition.
- Hose system: Electric hose reel c/w 1" x 100' hose. Addtional 100' sections of 1.5" fire hose can be added.
Pump Options
- Low, medium, and high-pressure pump options
- Compatible with customer-preferred pump options

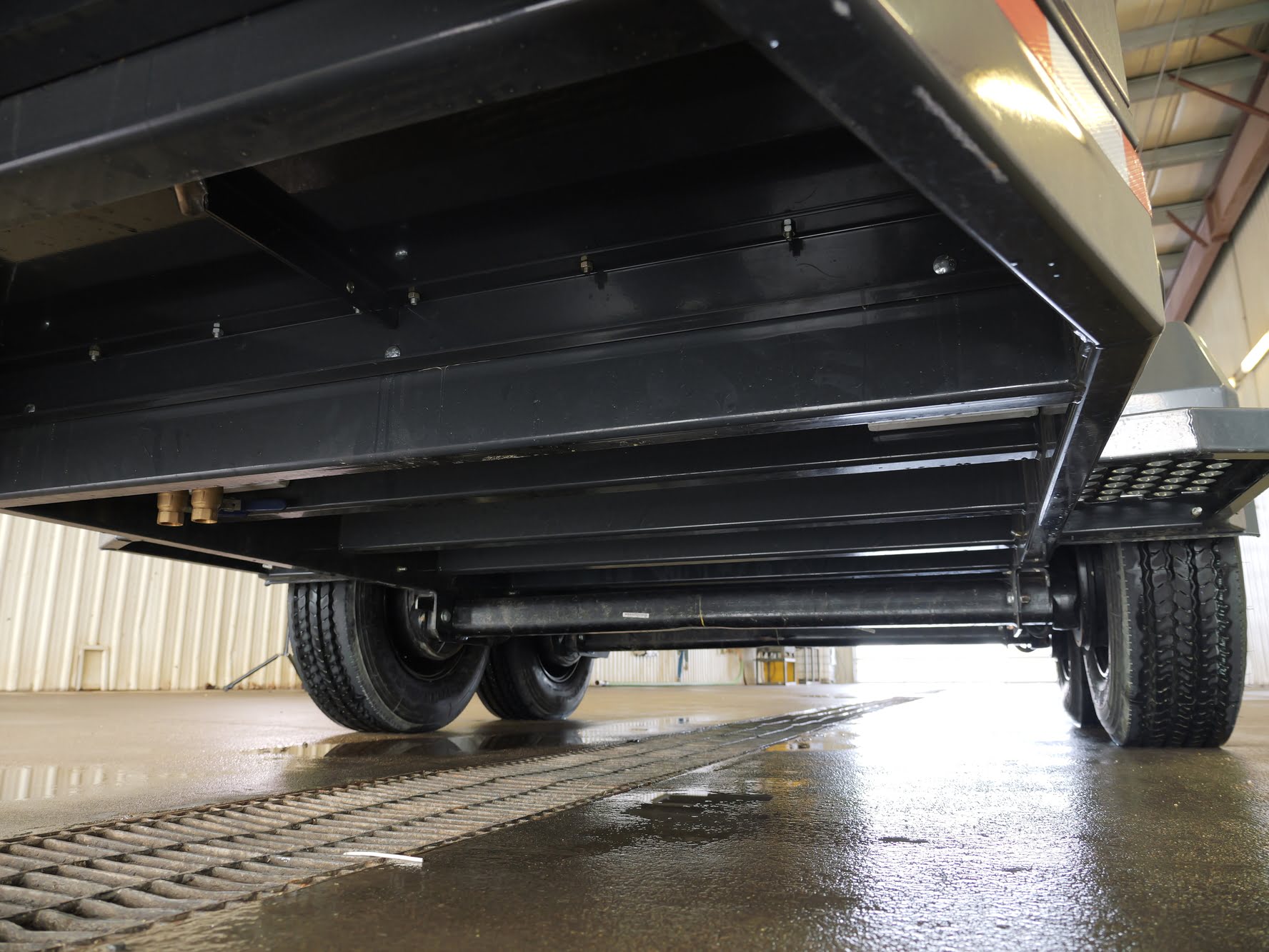

Axles, Brakes, and Running Gear
- Axles: Two 8,000-lb rubber torsion axles
- Brakes: Electric brakes
- Wheels/Tires: Aluminum wheels with 235/75R17.5 tires
- Coupler: 2-5/16-inch adjustable ball coupler or pintle hitch option available
Compliance and Regulatory Information
DOT Compliance
The Water Chief® is a DOT-compliant water trailer, intended for safe transportation on public roads when operated within rated limits. DOT-related considerations include:- Axle ratings
- Braking systems
- Lighting and wiring
- Coupling and safety equipment
