Water Wizard® Specifications
When teams search for mobile water equipment, specifications are often the first filter. Capacity, dimensions, pump configuration, and compliance determine whether a trailer fits existing vehicles, site access limits, and regulatory requirements.
This page provides a detailed overview of Water Wizard® specifications, configuration options, and performance characteristics to support technical review and purchasing decisions.
Water Wizard® Overview
The Water Wizard® is Magna Manufacturing’s professional-grade water trailer, engineered for repeat use on construction sites, municipal projects, and demanding field operations. It is engineered to transport, stage, and deliver water efficiently while maintaining stability and durability under continuous use.

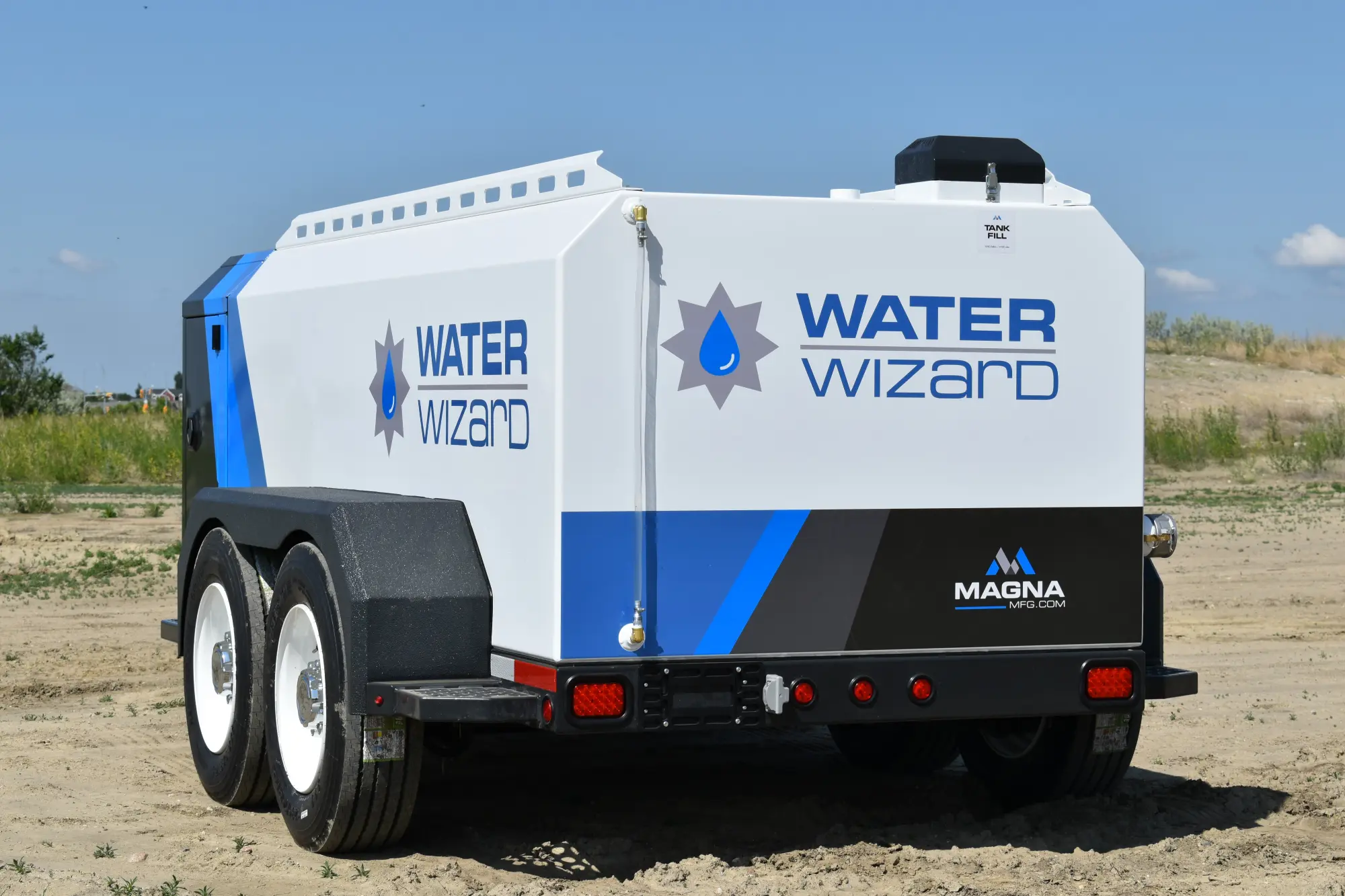

Water Wizard® Capacity
- 1,250 US gallons (4,700 L)

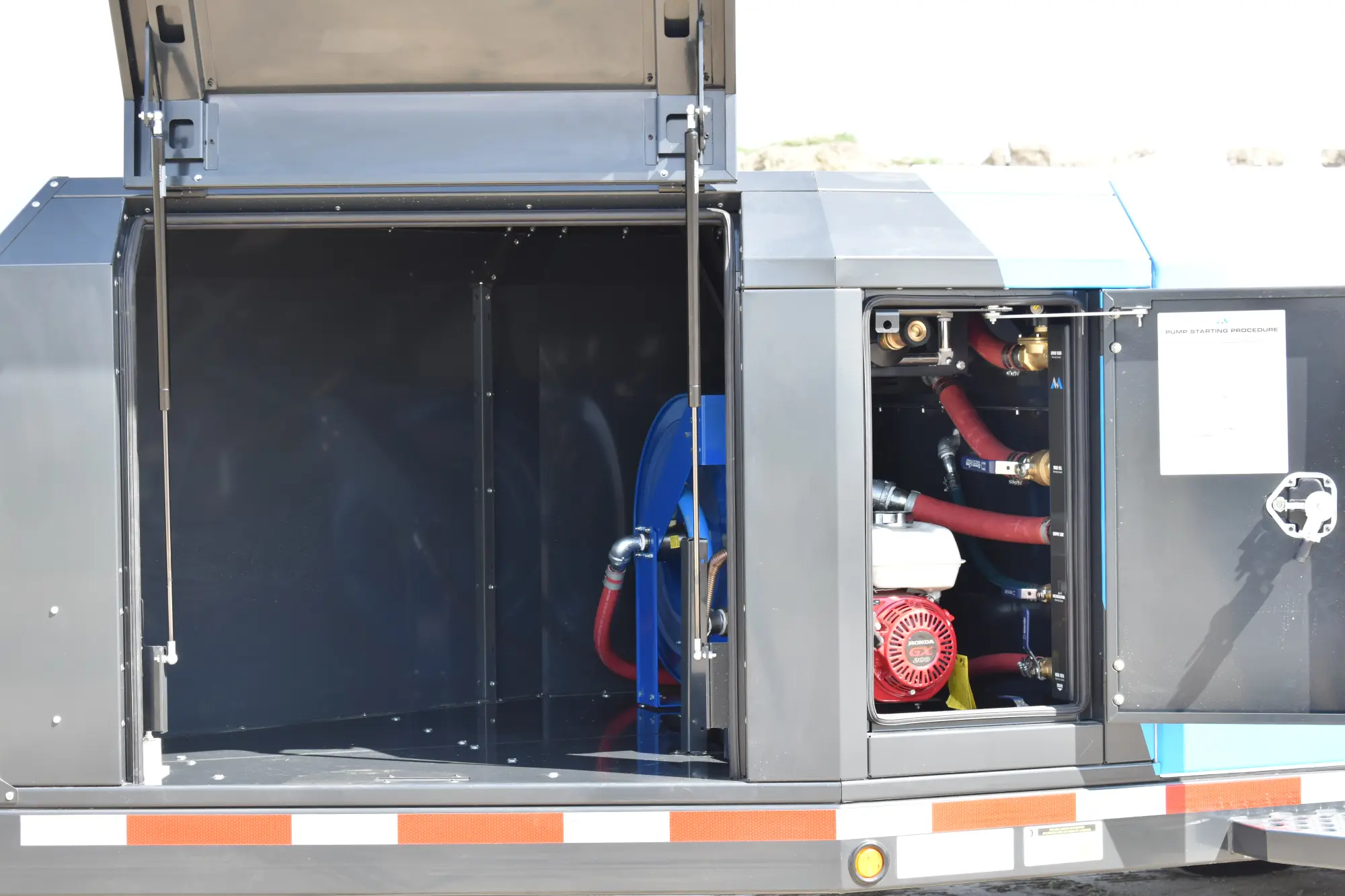

Water Wizard® Dimensions
- Length: 18 ft 6 in (5.6 m)
- Width: 7 ft 3 in (2.2 m)
- Height: 5 ft 8 in (1.7 m)
Weight Ratings
- Tare weight: 4,750 lbs (2,150 kg)
- GVWR: 18,000 lbs (8,165 kg)
Water Wizard® Tank Specifications and Options

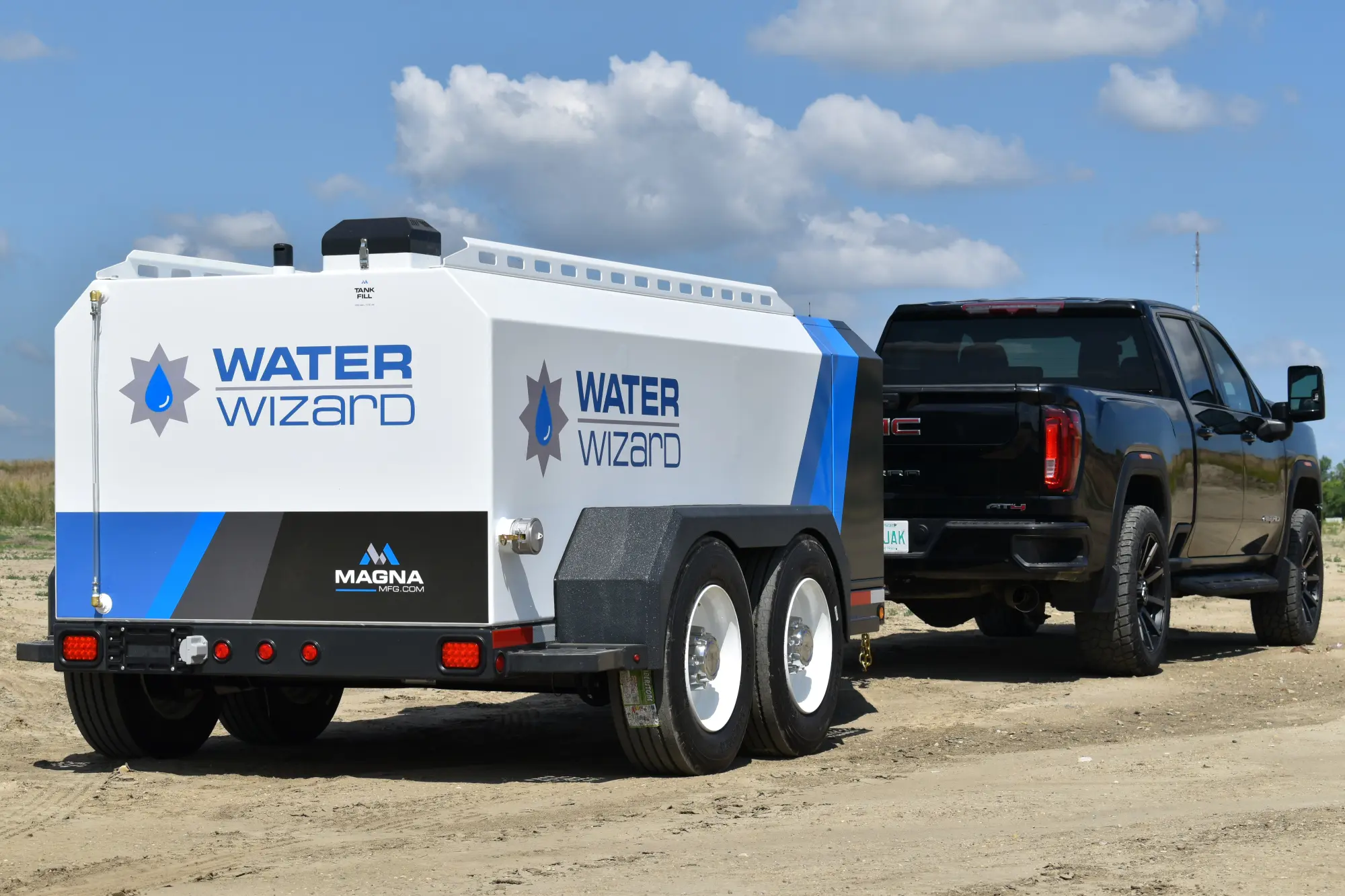

Tank Construction
- Heavy-gauge steel tank
- Dual internal baffle system to manage liquid surge during transport
Steel construction is selected for durability and resistance to cracking or deformation under repeated loading and unloading cycles.

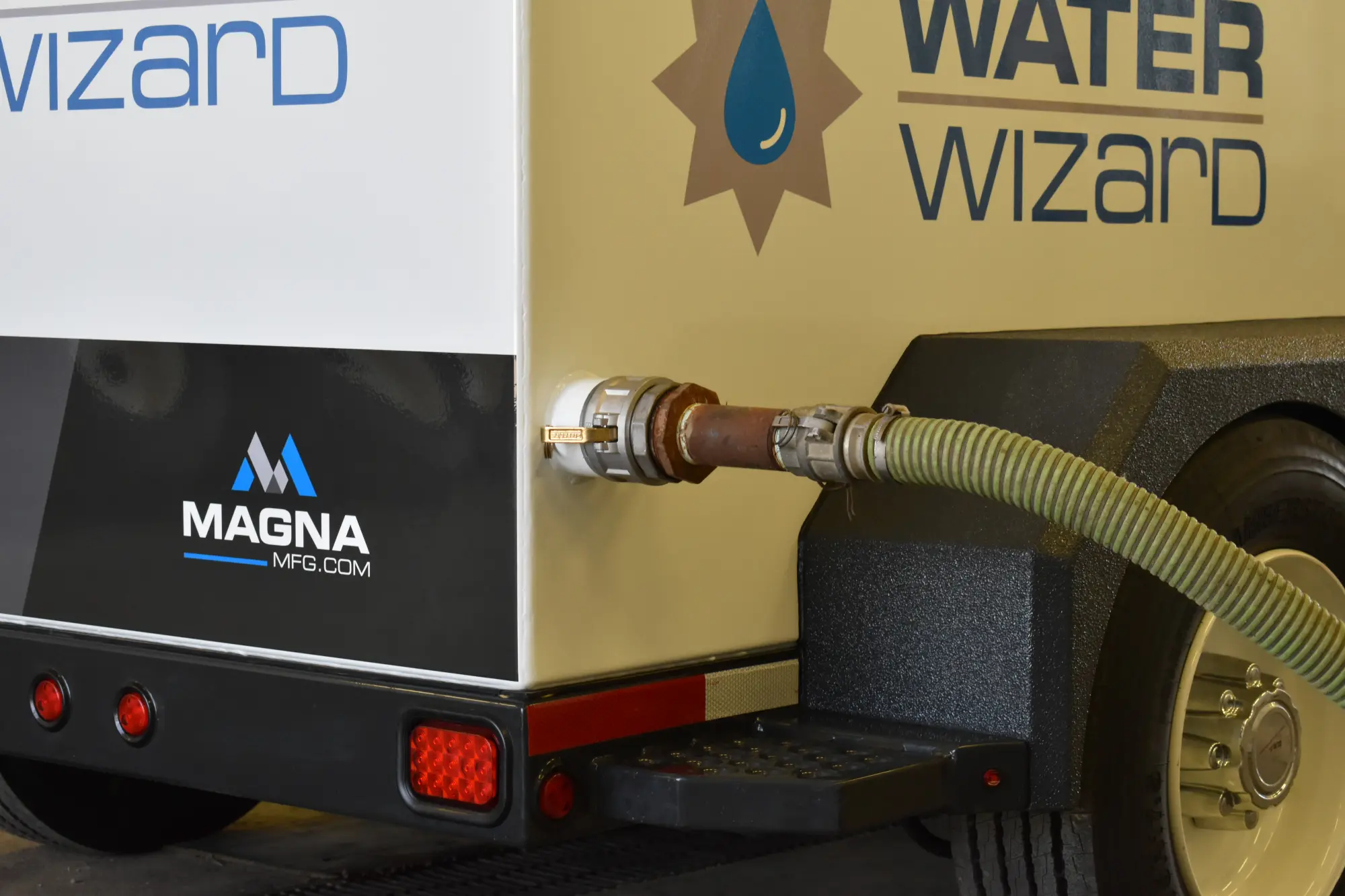

Water Wizard® Tank Options
- Interior tank coating (application dependent)
- Interior tank lighting
- Rock Guard fender coating
Tank options are selected at order based on intended use and operating environment.
Water Wizard® Pump Specifications

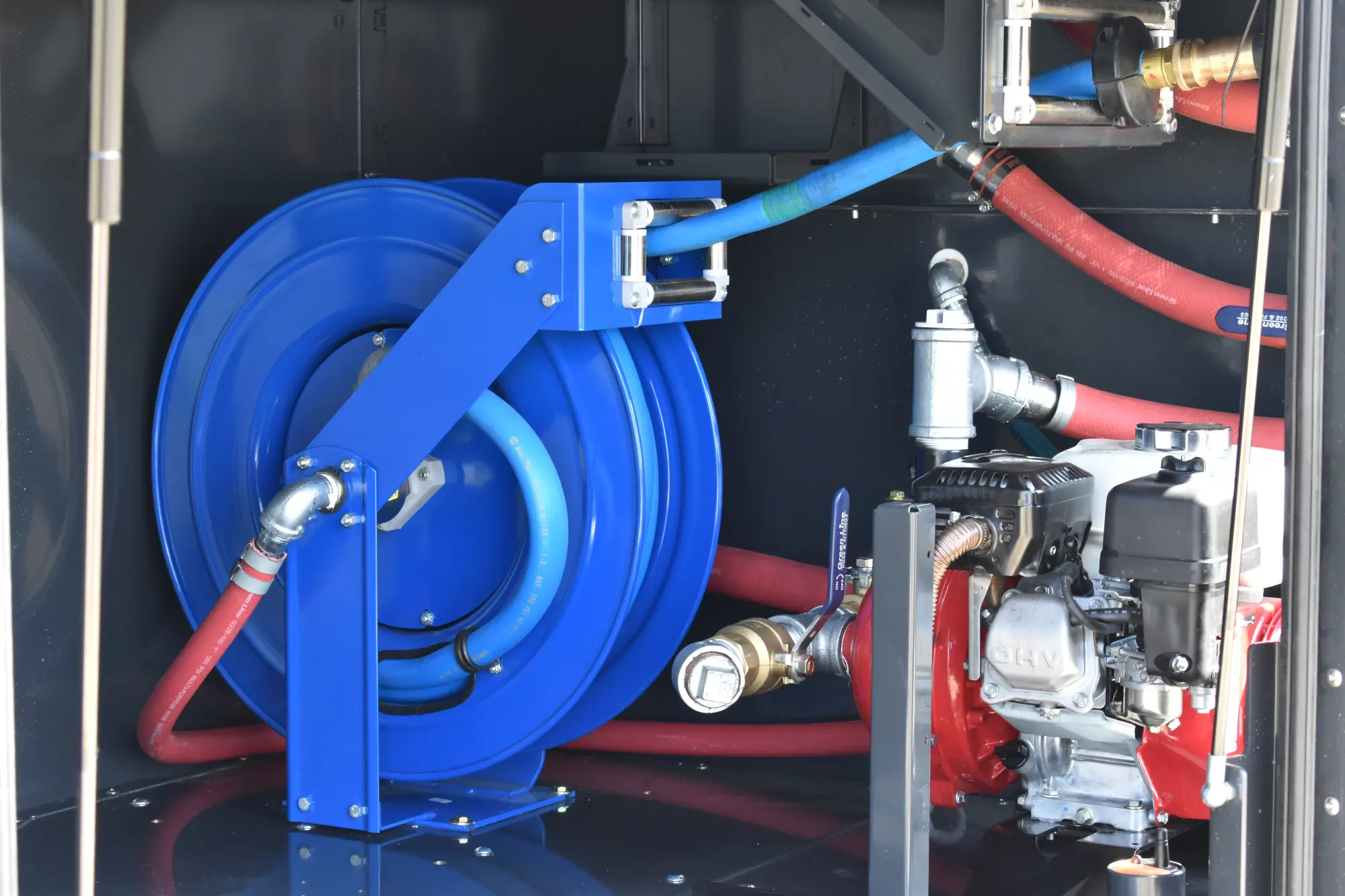

Standard Pump System
- Engine: Honda GX200
- Pump: Fire pump configuration
- Distribution: 2-inch (50 mm) distribution spray head
- Hose system: Manual hose reel with 1-inch × 100-ft hose

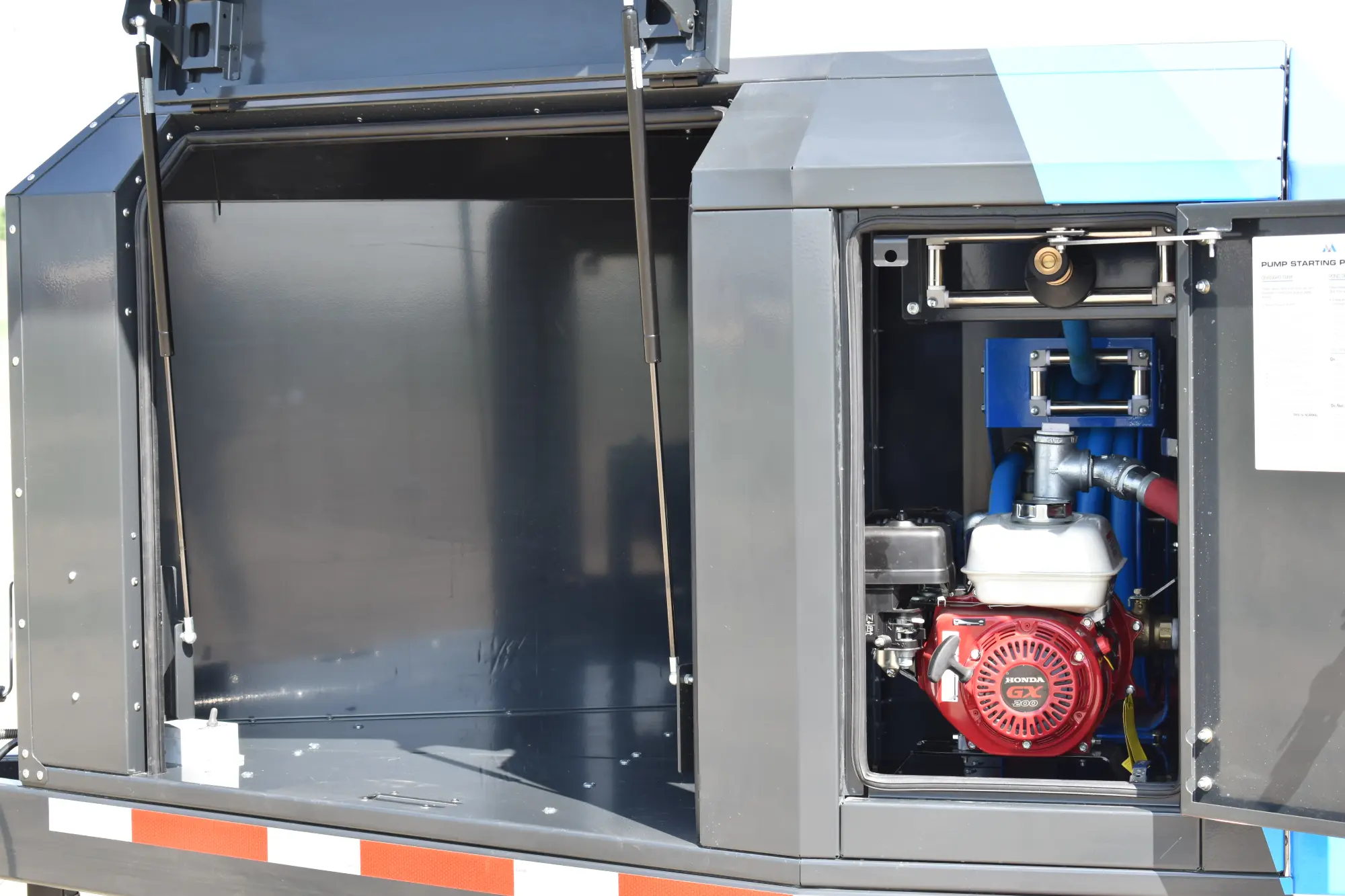

Optional Pump Configurations
- High-volume pump options
- High-pressure pump options
- Electric start (E-start)

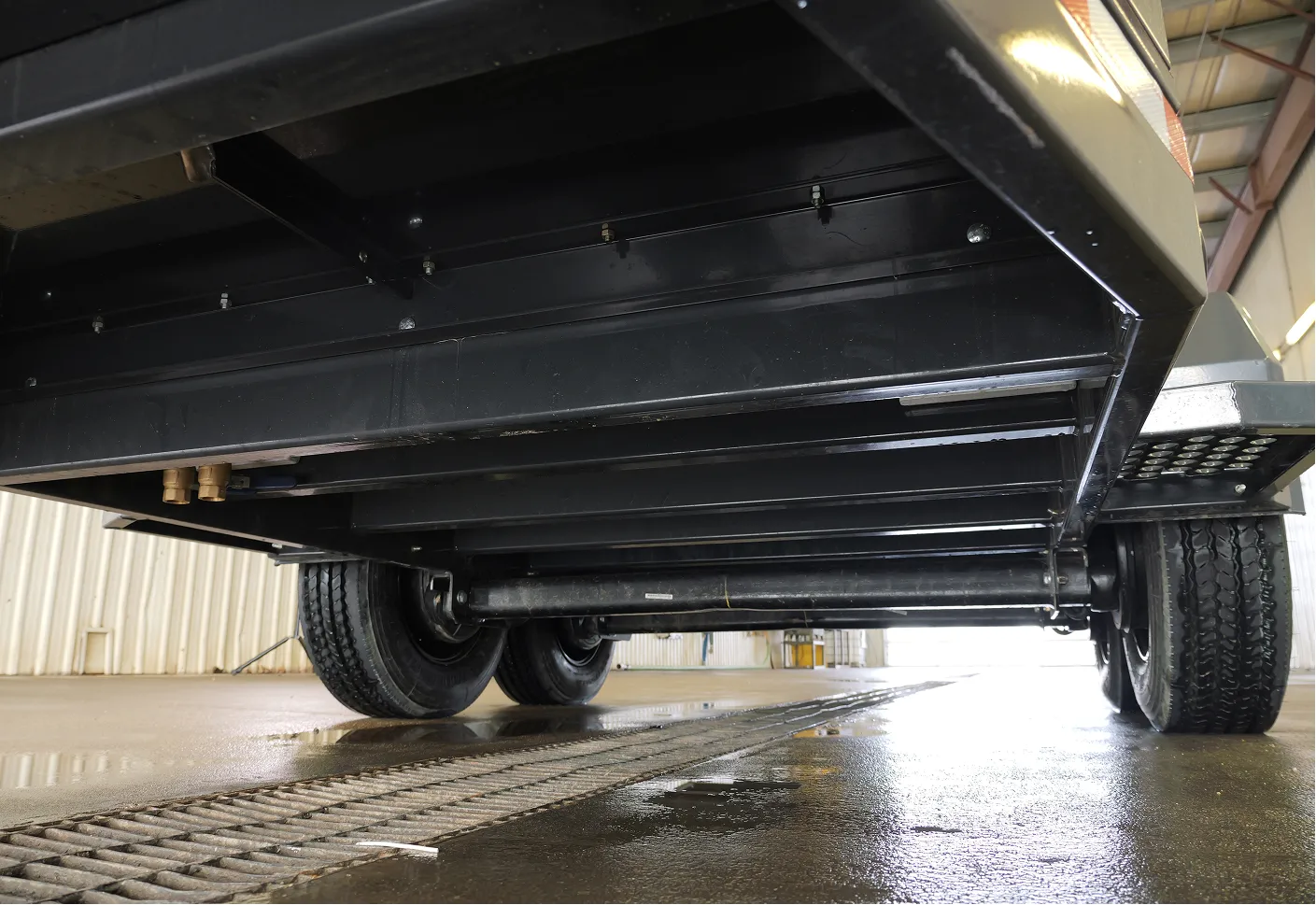

Axles, Brakes, and Running Gear
- Axles: Two 8,000-lb rubber torsion axles
- Brakes: Electric brakes
- Wheels/Tires: Aluminum wheels with 235/75R17.5 tires
- Coupler: 2-5/16-inch adjustable ball coupler
Compliance and Regulatory Information
DOT Compliance
The Water Wizard® is designed as a DOT-compliant water trailer, intended for safe transportation on public roads when operated within rated limits.
DOT-related considerations include:
- Axle ratings
- Braking systems
- Lighting and wiring
- Coupling and safety equipment
NSF and Potable Water Use
NSF compliance depends on configuration and intended use.
For potable water applications:
- Interior tank coating options are available
- NSF requirements should be specified at the time of order
